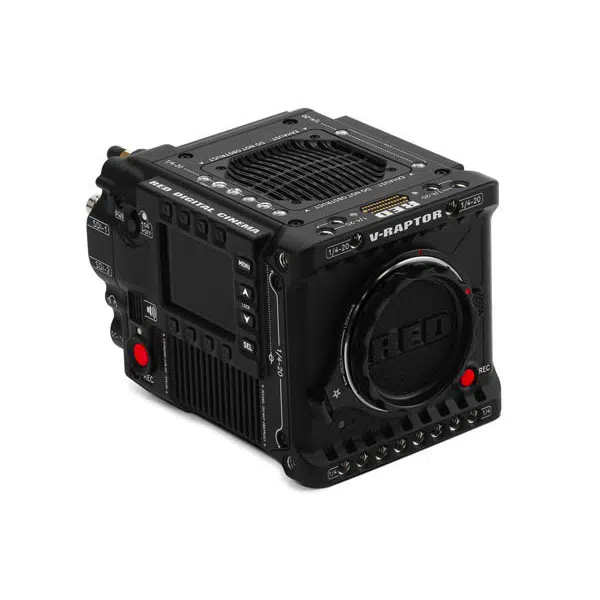

RED V-RAPTOR 8K (Vistavision)



RED V-RAPTOR 8K (VistaVision) :                               550€ HT/Jour

• 1 corps caméra RED RAPTOR en monture RF
• 1 Bague d’adaptation vers EF (avec filtre VariND intégré – sur demande)
• 1 Bague d’adaptation vers PL (avec filtres ND 0.6/1.2/2.1 intégrés – sur demande)
• 3 cartes CFExpress RED 660Gb + Lecteur
• Écran RED/SmallHD DSMC3 + câbles USB-C
• 2 WingGrip
• 1 Adaptateur V-Lock
• 6 Batteries V-Lock micro 150wh + chargeur



SENSOR TYPE V-RAPTOR™ 8K VV 35.4 Megapixel CMOS
EFFECTIVE PIXELS 8192 x 4320
SENSOR SIZE 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE 17+ stops
MOUNT TYPE Integrated RF mount with RF lens support
Supports Canon EF lenses via compatible Canon RF to EF mount adapters
Accepts other Canon RF mount-based lens adaptors for diverse lens choices
MAX DATA RATES Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1]
REDCODE® RAW MAX FRAME RATES 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
BEST AVAILABLE REDCODE® SETTINGS REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
REDCODE® RAW
ACQUISITION FORMATS
8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
CONSTRUCTION Aluminum Alloy
WEIGHT 4.03 lbs (without body cap and CFexpress card)
BATTERY TYPE Integrated V-Lock battery interface optimized for Micro V-Lock Batteries[1]
DC POWER INPUT 11-17V via 6-pin DC-IN
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE –20°C to 50°C (–4°F to 122°F)
STORAGE RELATIVE HUMIDITY 0% to 85% non-condensing
COLOR MANAGEMENT Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import of CDLs
AUDIO Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz
REMOTE CONTROL Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload
MONITOR OUTPUTS Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS DSMC3™ RED® Touch 7.0” LCD
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4″ LCD for camera control (no preview video)
RED CONTROL Access full camera controls and live preview from iOS or Android devices
Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C
